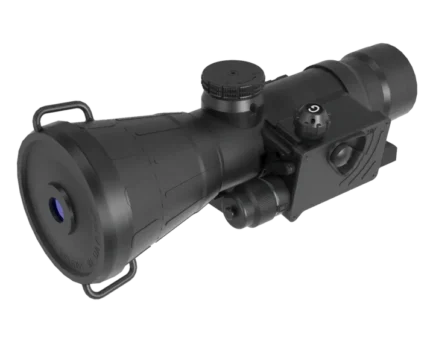

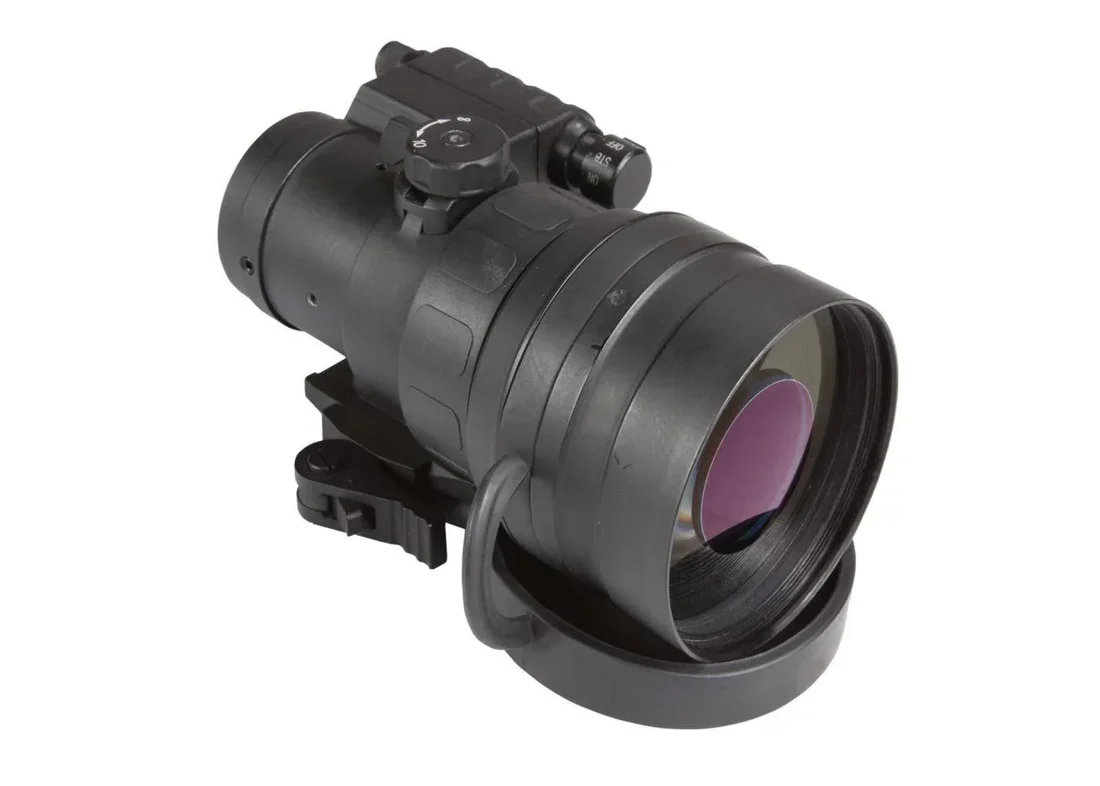

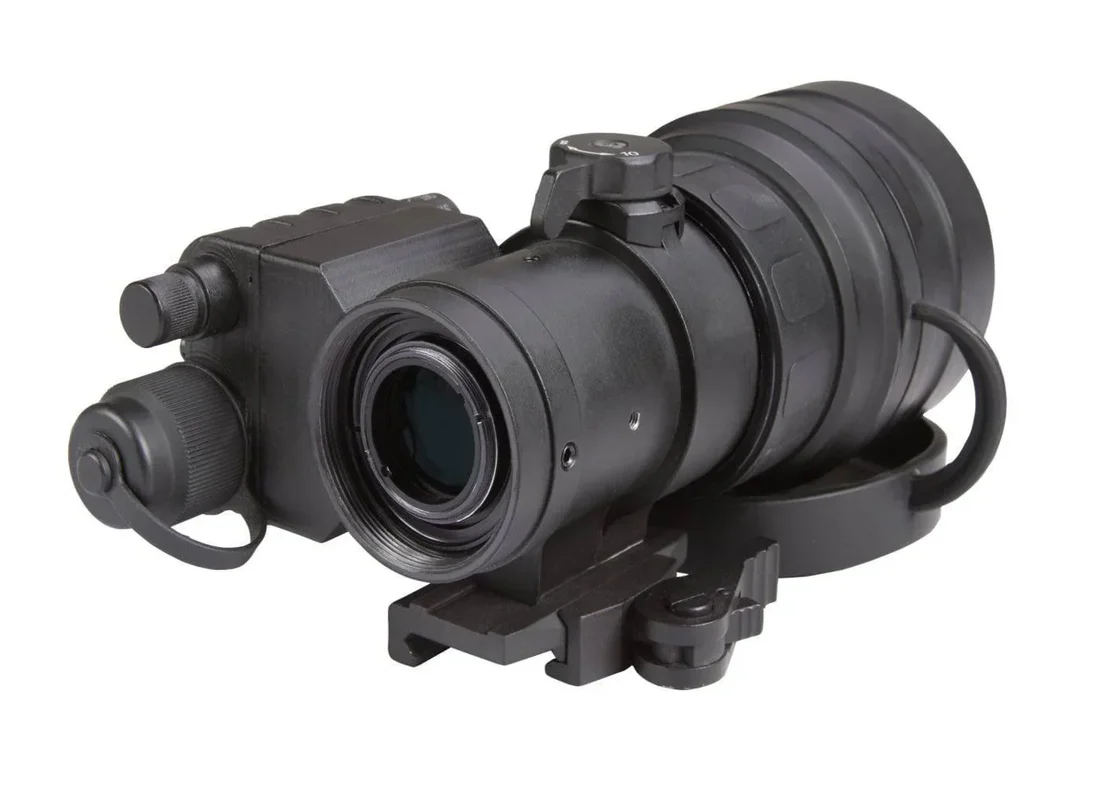

AGM Comanche 22 3AL1 Medium Range Night Vision Clip-On Scope
$6,200.00
AGM Comanche 22 3AL1 Medium Range Night Vision Clip-On System Gen 3 “Level 1” 16CO2123283111

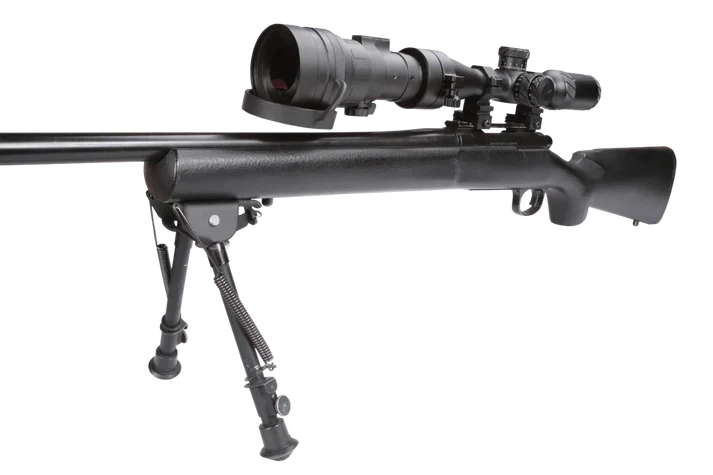

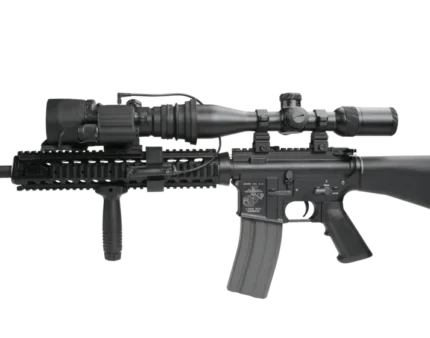

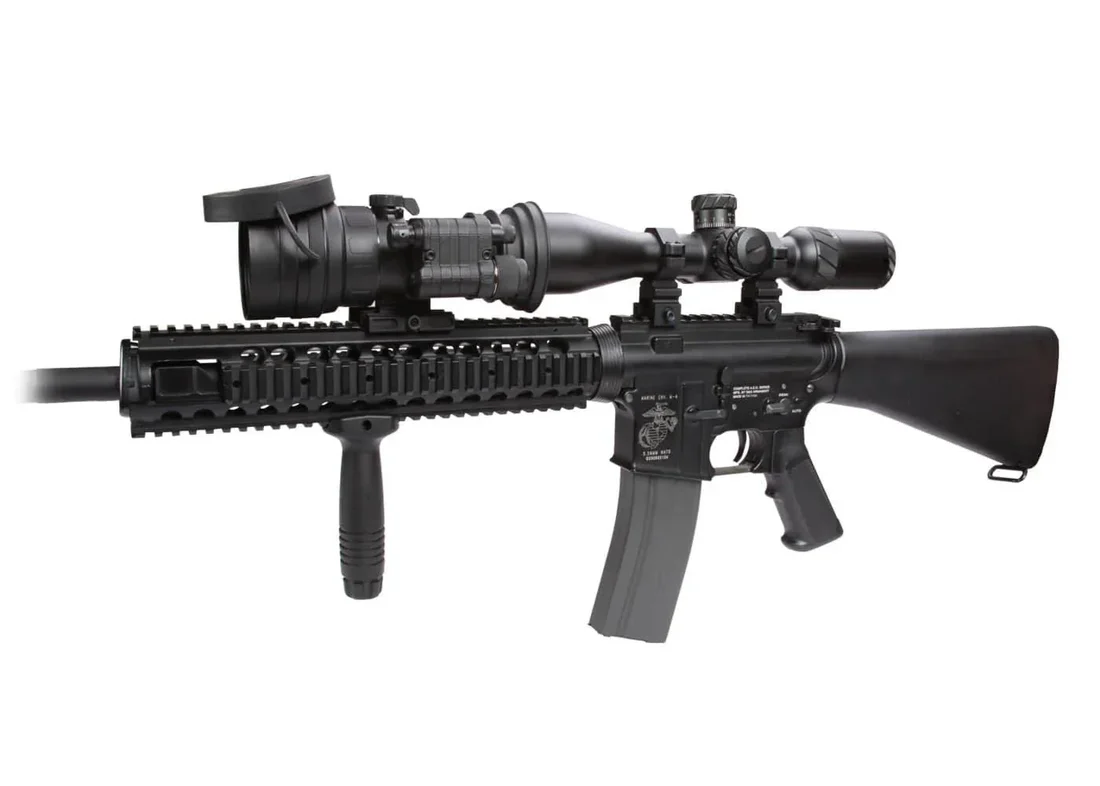

The AGM Comanche 22 Night Vision Clip-On (NVCO) system incorporates cutting-edge night vision technology to enhance mid-range nighttime shooting. Designed for maximum clarity, reliability, and versatility, the Comanche 22 offers top-tier functionality at an affordable price. It mounts directly onto a standard Weaver or Picatinny rail in front of your existing day scope, converting it into a powerful Night Vision Device without the need for re-zeroing. This NVCO is optimized for use with day scopes up to 7x magnification and includes a quick-release mount and wireless remote control for added convenience. With its superior target acquisition and enhanced aiming capabilities, the Comanche 22 proves invaluable for even the most demanding missions.
AGM Comanche 22 3AL1 Features:
- Simple, quick conversion of daytime scopes to NVDs
- Manual gain control
- Mounts in front of any daytime scope, no re-zeroing required
- Powered by a single Alkaline 1.5 V AA or 3 V CR123A Lithium battery
- Bright-light cut-off system
- Quick-release mount
- Limited three-year warranty
Tube Level Info:
|
Gen2+ Lvls |
NL1/NW1 – Gen2+ Lvl1 |
NL2/NW2 – Gen2+ Lvl2 |
NL3 – Gen2+ Lvl3 |
||||||
|
Zone |
1 |
2 |
3 |
1 |
2 |
3 |
1 |
2 |
3 |
|
>.015 or larger |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
1 |
|
>.012 – .015 |
0 |
0 |
0 |
0 |
0 |
1 |
0 |
1 |
1 |
|
>.009 – .012 |
0 |
1 |
1 |
0 |
2 |
2 |
1 |
2 |
2 |
|
>.006 – .009 |
0 |
1 |
2 |
1 |
2 |
2 |
1 |
2 |
2 |
|
.003 – .006 |
1 |
2 |
3 |
2 |
3 |
3 |
2 |
3 |
3 |
|
*Qty indicates Max Spots Allowed in Each Zone |
|
|
|
|
|
|
|||
|
**Spot Size (in.) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Gen3 Lvls |
3NL1/3AW1 – Gen3 Lvl1 |
3NL2/3AW2 – Gen3 Lvl2 |
3NL3/3AW3 – Gen3 Lvl3 |
||||||
|
Zone |
1 |
2 |
3 |
1 |
2 |
3 |
1 |
2 |
3 |
|
>.015 or larger |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
1 |
|
>.012 – .015 |
0 |
0 |
0 |
0 |
0 |
1 |
0 |
1 |
1 |
|
>.009 – .012 |
0 |
1 |
1 |
0 |
2 |
2 |
1 |
2 |
2 |
|
>.006 – .009 |
0 |
1 |
2 |
1 |
2 |
2 |
1 |
2 |
2 |
|
.003 – .006 |
1 |
2 |
3 |
2 |
3 |
3 |
2 |
3 |
3 |
|
*Qty indicates Max Spots Allowed in Each Zone |
|
|
|
|
|
|
|||
|
**Spot Size (in.) |
|||||||||
AGM Comanche 22 3AL1 Specifications:
Image Intensifier Tube
Gen 3 Auto-Gated “Level 1”
Resolution
64-72 lp/mm
Magnification
Unity 1x
Lens System
80 mm; F/1.44
FOV
12°
Focus Range
10m to infinity
Controls
Direct
Led Indicators
Low battery; Excessive light conditions
Infrared Illuminator
Detachable; Long-range (not included)
Manual Gain Control
Yes
Bright Light Cut-Off
Yes
Automatic Shut-Off System
Yes
Battery Type
One CR123A (3V) or AA (1.5 V)
Battery Life (Operating)
Up to 60 hours at 20°C
Exit Pupil Diameter
22 mm
Operating Temperature Range
-40°C to +50°C (-40°F to +122°F)
Storage Temperature Range
-50°C to +50°C (-58°F to +122°F)
Weight
0.75 kg (1.65 lbs)
Overall Dimensions
168×85×80 mm ( 6.6×3.3×3.1 in)
Package Includes
Quick-Release Mount, Battery Adapter, CR123A Battery, Wireless Remote Control, Picatinny Adapter for Wireless Remote Control, Light Suppressor for Day Scope, Light Suppressor 1, Light Suppressor 2, Light Suppressor 3, User Manual, Carrying Case
|
Warranty |
3 Years |
